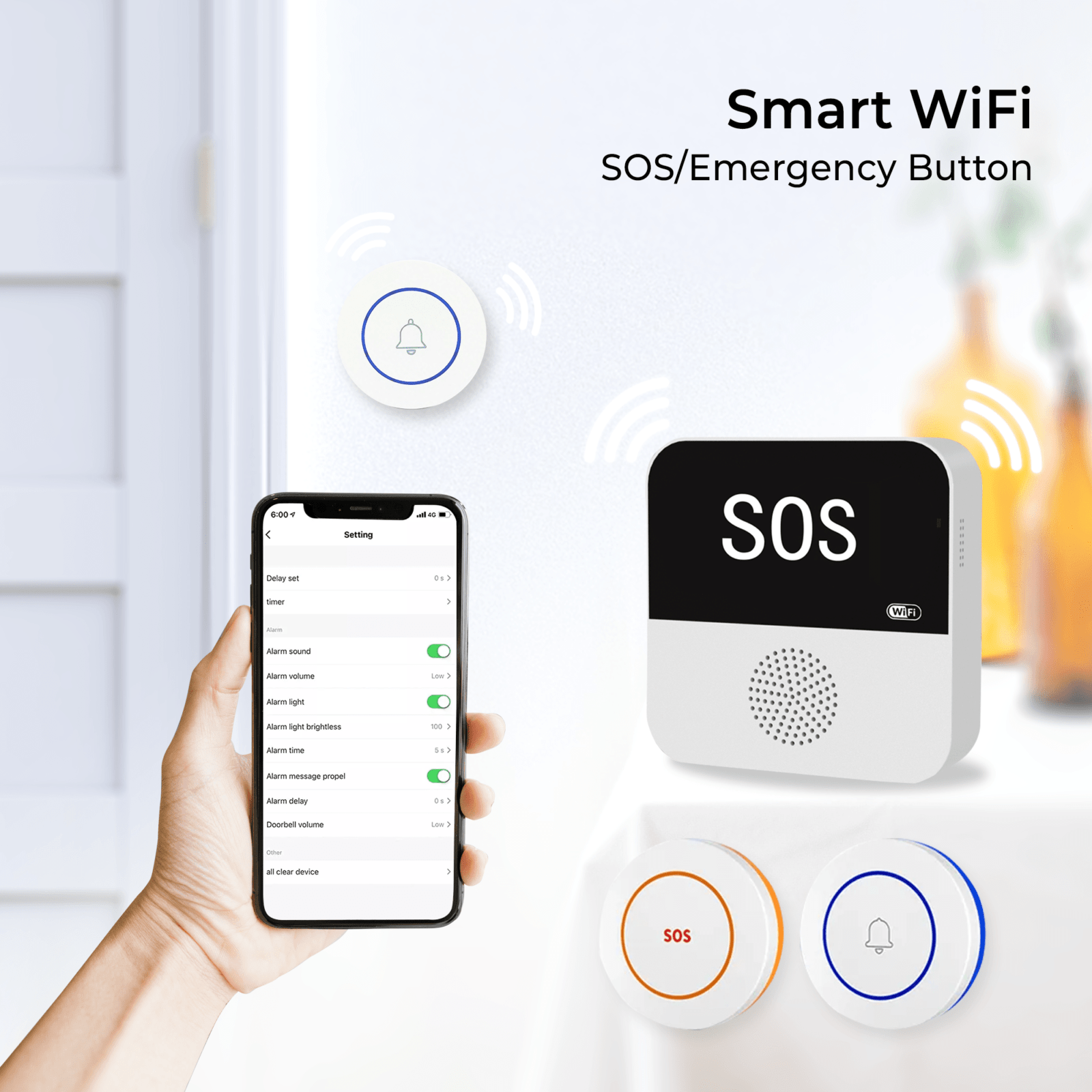

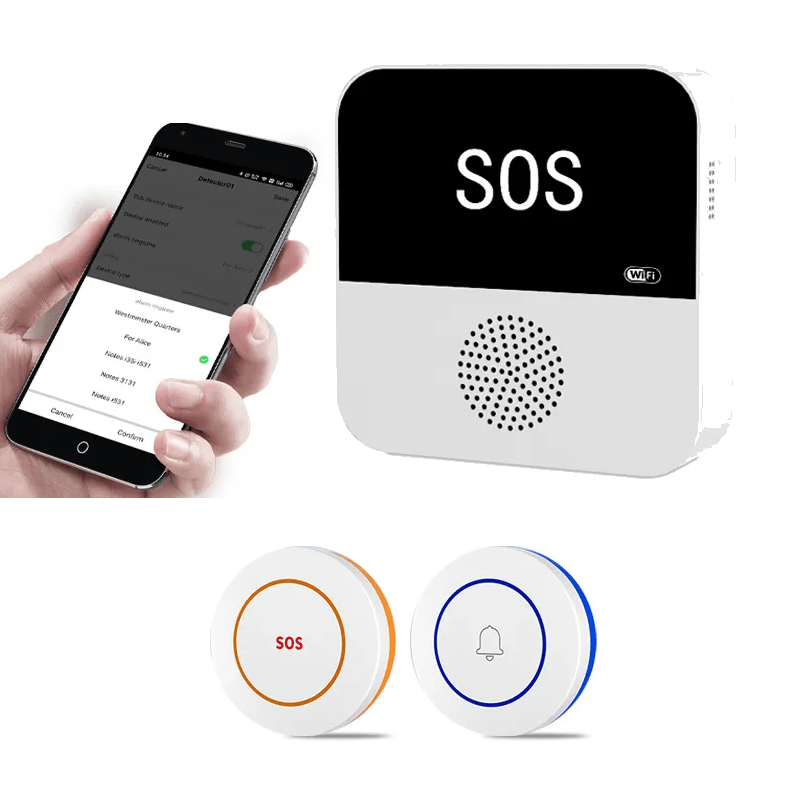

Wi-Fi Emergency Signal Device
Wi-Fi Emergency Signal Button / Alarm Station
Model No: RS701
Small size and multi-function, emergency signal device, anti-theft alarm, doorbell & elderly alarm device;
Set selected areas for the alarm, such as: parent’s room, children’s room, and choose any alarm sound and contact notification.
The pager and call button for elderly are connected to the cell phone via WiFi to realize mobile APP remote push, which can accurately and clearly detect the trigger signal of the button. When the elderly encounters an emergency, they can easily press the SOS button and both the phone and the pager will receive an alarm signal, reminding the caregiver to take care at anytime
Long Range Pager- The caregiver pager emits a reliable signal, the alarm range in an open area is 328ft/100M. The pager will not interfere with other devices, but walls and metal will affect the receiving distance.
Audible/Visible Alarms Call Bell- One press of the call button sends a signal to a receiver, the pager will sound an audible alarm, and the built-in indicator light will flash red to remind a caregiver, or drawing the caregiver attention via a visual or audible chime alert. The pager has a choice of 12 ringtones and 4 adjustable volume levels from 0db to 90db. There is a silent available with LED flashing.
Easy to Set Up- The caregiver pager is connected to a power source via USB, and can be used without batteries. When the phone is paired with a pager, the number of accessories can be increased by setting on the mobile APP according to specific needs. The base station supports 200 wireless accessories, the pager name can be set, easy to label many different call buttons.
Wide use of applications- This alert system is lightweight and portable, with a lanyard design that can be hung around the neck or put into a pocket, or can easily be customized depending on the customer preference. This alarm is suitable for paralyzed patients, disabled, elderly monitoring, inconvenience of movement, nighttime discomfort, people prone to accidental falls, hospital bed care and pregnancy care, etc.
- Input voltage: USB 5V
- 100 alarms can be assigned per alarm station.
- Battery: 3.6V 120mAh (rechargeable battery)
- Standby current: & lt; 50 ua
- Working current: & lt; 70 ma
- Charge / Standby time: 1 year
- Power: 0.2w
- Wireless frequency: 2.4GHz
- Wireless network protocol standard: 802.11b
- Operating temperature: –20 ~ 55ºC
- Humidity: 20 ~ 95%
- Material: ABS + PC
- Waterproof: IP65
RS701 Wi-Fi Emergency Signal Device – Reliable, Wireless Safety Alerts
The RS701 Wi-Fi Emergency Signal Device is a compact, durable, and highly reliable safety solution designed for critical alert systems across diverse environments. With support for up to 100 alarms per station, this device ensures scalable deployment for industrial, healthcare, hospitality, and security applications. Powered by a USB 5V input and equipped with a built-in 3.6V 120mAh rechargeable battery, the RS701 offers extended standby and operating performance. It can remain in standby mode for up to one year thanks to its low current draw of less than 50μA in standby and less than 70mA while active. The device operates on a 2.4GHz Wi-Fi frequency using the 802.11b wireless network protocol, allowing seamless integration into existing wireless infrastructure. Its energy-efficient design consumes only 0.2W of power, making it ideal for long-term, always-on deployment. Built for harsh environments, the RS701 features a rugged ABS + PC housing with an IP65 waterproof rating, allowing it to function reliably in temperatures from -20°C to 55°C and humidity levels from 20% to 95%.Key Features:
- Model: RS701
- Power Supply: USB 5V
- Battery: 3.6V 120mAh rechargeable
- Max Alarms: 100 per alarm station
- Wireless: 2.4GHz Wi-Fi (802.11b)
- Standby Time: Up to 1 year
- Operating Temp: -20°C ~ 55°C
- Waterproof: IP65
- Material: ABS + PC
