RF Transmitter RS-5000-N

RS-5000-N Long-Range RF Transmitter – Bidirectional, Multi-Button, 6km+ Wireless Control

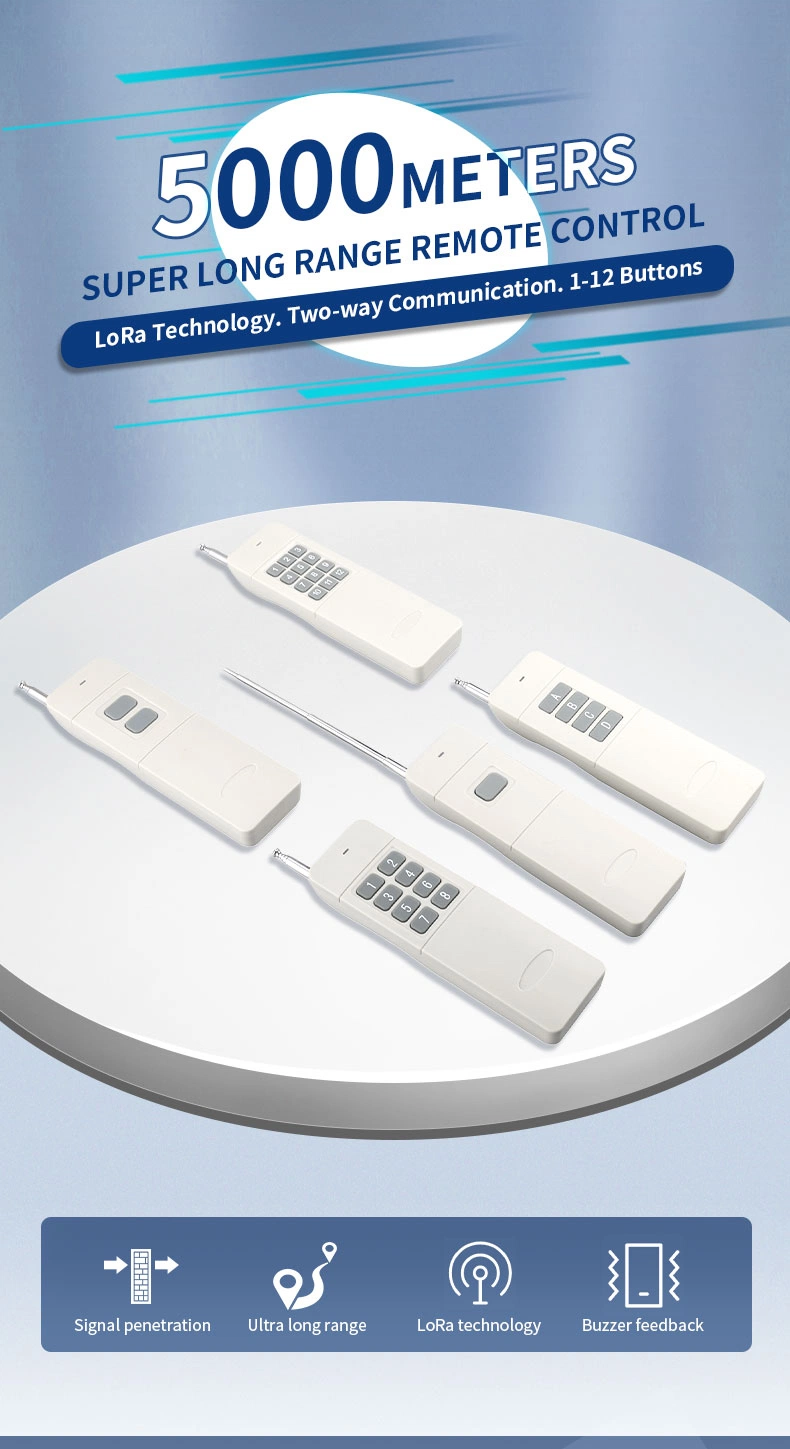

The RS-5000-N RF Transmitter is a state-of-the-art, long-range wireless control device engineered for industrial, commercial, and remote operation environments. Designed for high-performance applications, this device offers up to 6,000 meters of transmission distance in ideal conditions, thanks to its advanced FSK + LORA modulation and external telescoping antenna. Built with high-quality imported chips and manufactured through precise SMT processes, the RS-5000-N series delivers consistent performance and outstanding interference resistance. Its built-in spread spectrum technology enhances signal stability, even in environments saturated with RF noise. This versatile RF transmitter is available in multiple button configurations—1, 2, 4, 6, 8, or 12 channels—making it ideal for a wide range of applications from gate automation to complex industrial control systems. It operates on a DC 9V power supply with a modest 65mA current draw and provides an adjustable RF output power ranging from 3 to 30mW.

Key Features:

• Model: RS-5000-N
• Modulation: FSK (FM) + LORA (SPSP)
• Power Supply: DC 9V
• Current Consumption: 65mA
• RF Output Power: 3–30mW @ 433MHz
• Range: 5000–6000m (LOS with receiver)
• Encoding: Private learning code, auto code learning
• Frequencies: 434 / 868 / 915 MHz (programmable)
• Buttons: 1, 2, 4, 6, 8, or 12 (model-dependent)
• Feedback: Buzzer confirmation
• Dimensions: 127 × 41 × 20 mm
• Weight: 100g
• Temperature Range: -20°C to 72°C
• Build: High-quality plastic or metal casing

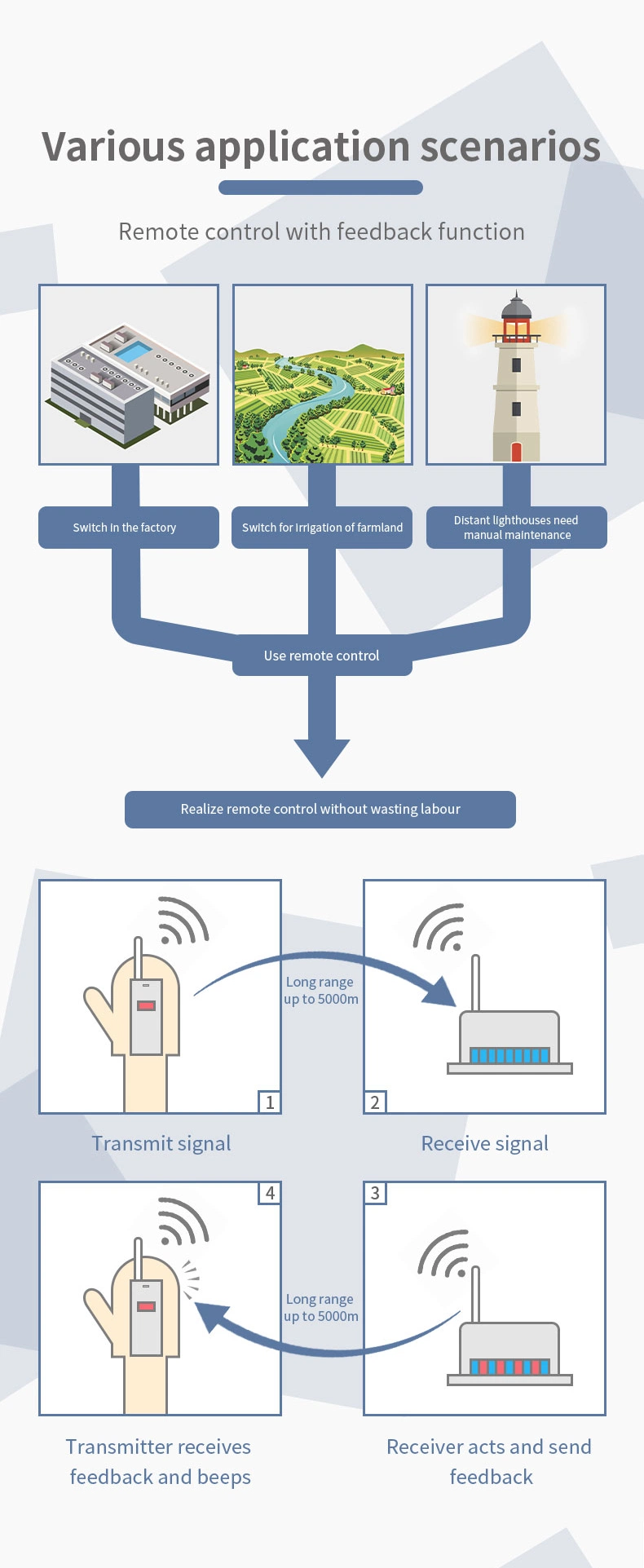

The RS-5000-N is ideal for long-range control systems, including remote gate openers, industrial automation, security access control, and more. Its bidirectional capability allows both sending and receiving of commands, setting it apart from conventional unidirectional remotes. Contact us today for orders & inquiries!
